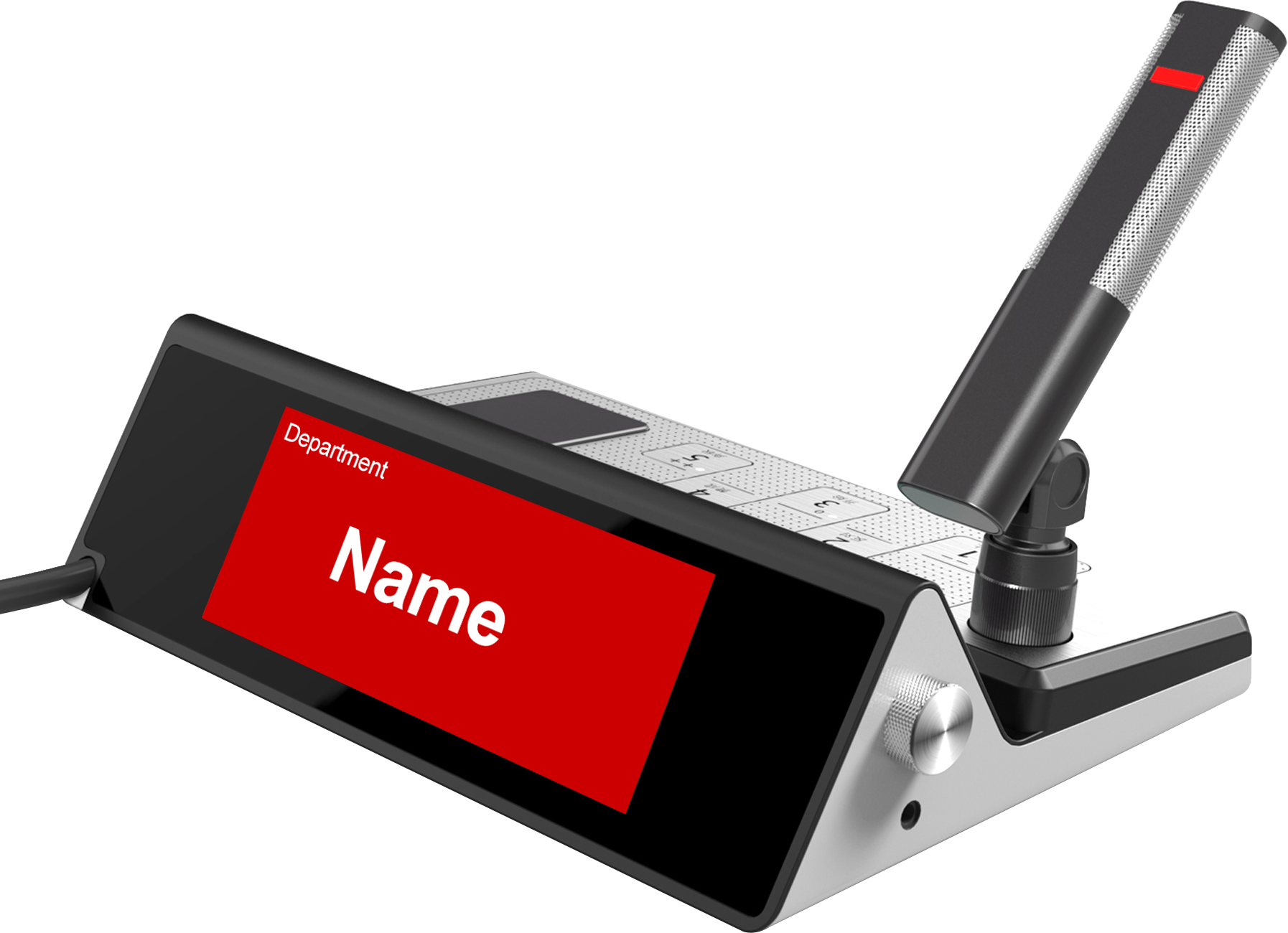

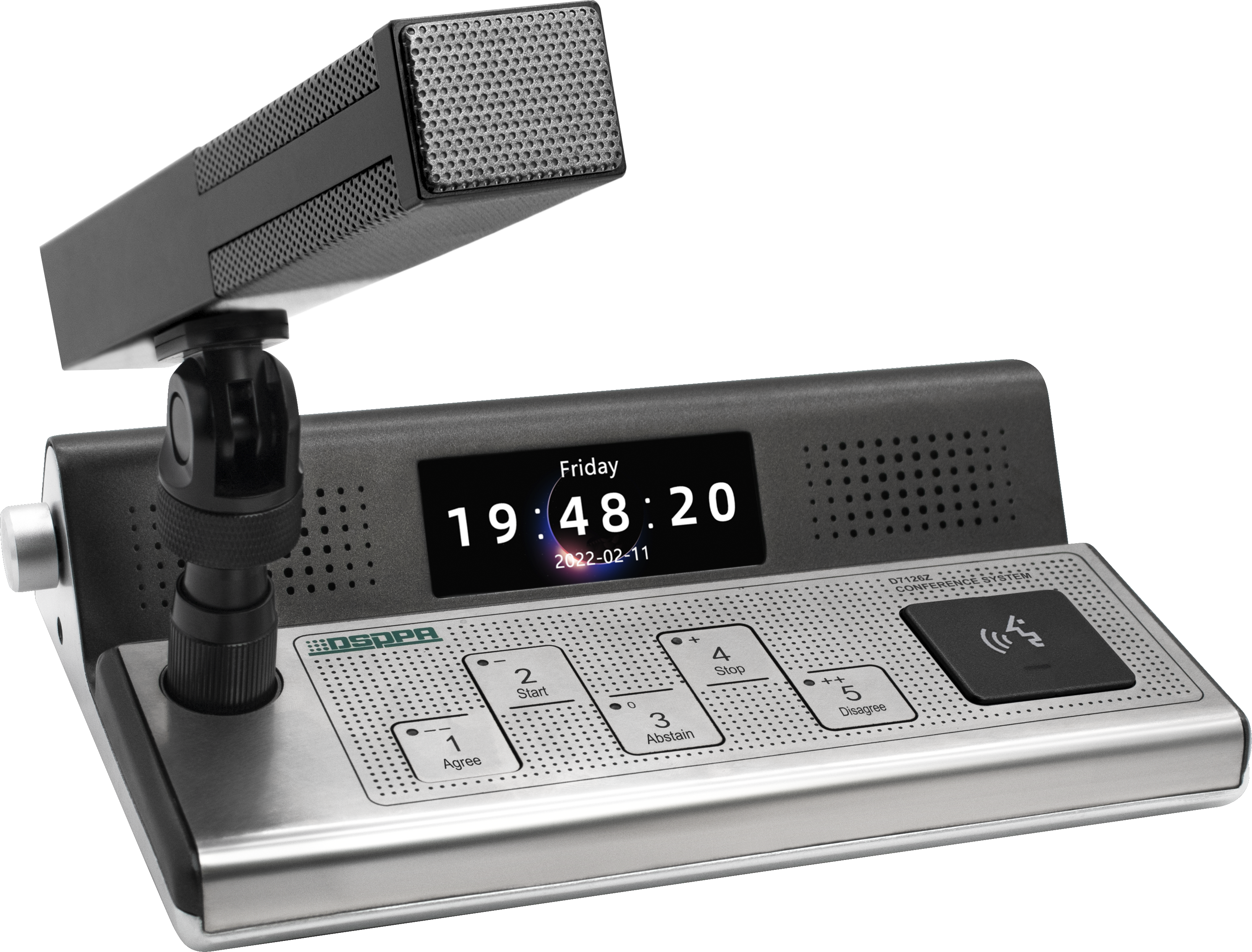

Desktop IP Conference System Discussion Voting Delegate Microphone with NameplateD7126Z
-
A conference speech mic integrating speaking, voting, and electronic table card.
-
Come with a 2m dedicated high-density cable and 1 RJ45 universal network plug.
-
Electric cardioid directional capacitive pickup with two-color indicator light (red/green), red for speaking, and green for applying for speaking.
-
The standard microphone rod is an aluminum alloy one-piece square microphone rod, 186mm in length. Other options: gooseneck microphone rod, oval microphone rod, square microphone rod with analog backup, square microphone rod with dual mics, and square microphone rod with dual mics and analog backup. See “Chapter 5 Accessories” below for details.
-
The microphone rod can be dismounted during the adjournment for maintenance and storage.
-
With an internal magnetic high-fidelity speaker, it will be automatically muted when the microphone is turned on to avoid howling.
-
With a 3.5mm stereo headset jack connected to the headphone, with adjustable volume.
-
With super strong anti-interference ability.
-

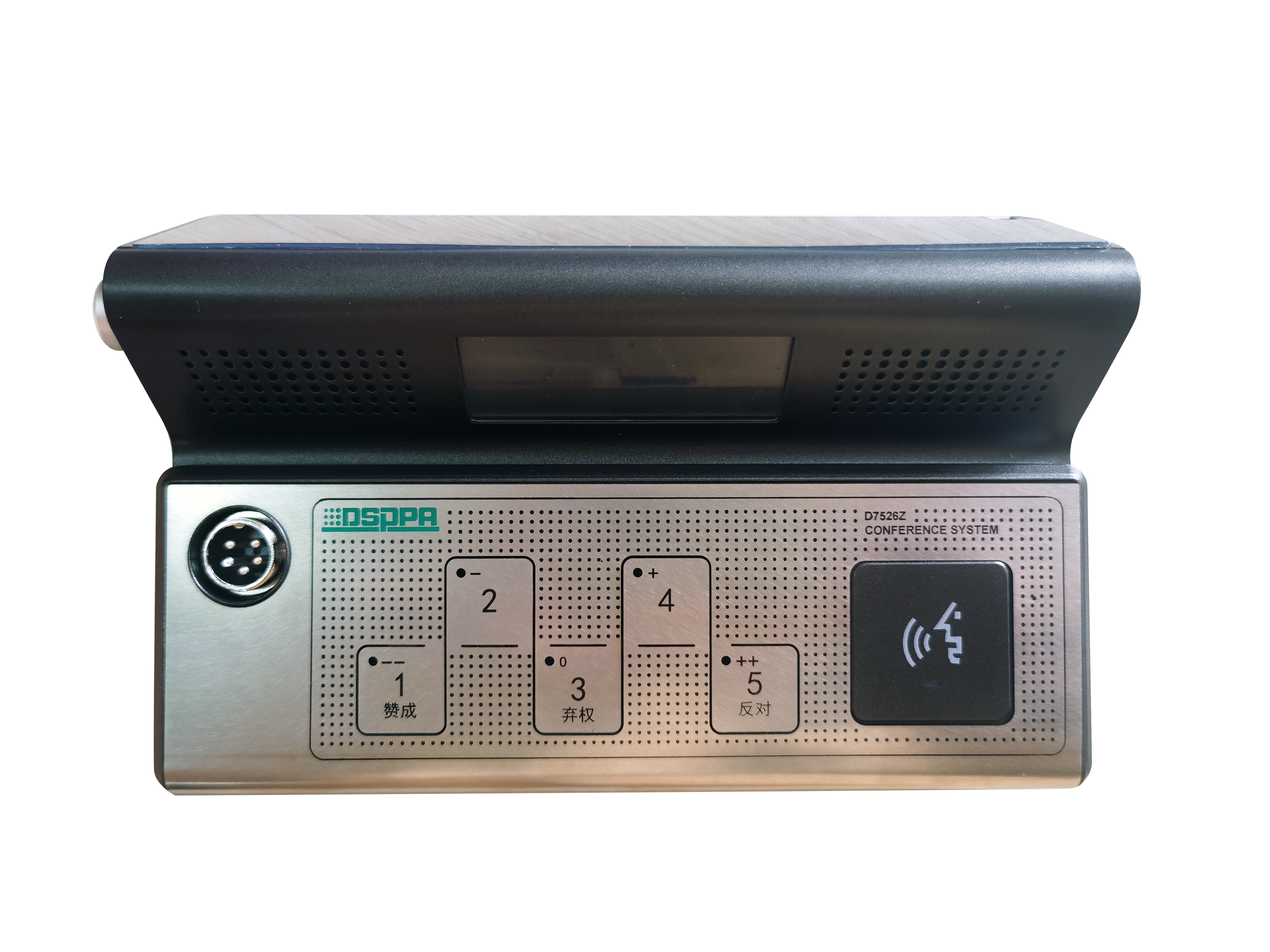

With the MIC button and 5 voting buttons, and the chairman priority button for the chairman mic.
-
With a button check-in function.
-
With a unique ID number for each conference mic.
-
The 4.0" RGB color LCD screen is used for electronic nameplate display, and the electronic nameplate editing is processed and issued by the PC background.
-
With a high-brightness 2.9" LCD screen, it can display the following information in real-time when the mic is working:
-
The ID number of the conference mic, the number of mics applying for speaking, the voting results, the number of attendants who have checked in, and various operation information, etc.;
-
The mic information is in simplified Chinese or English.
-
Equipped with a camera, it can realize automatic tracking after setting by the digital conference system host or PC control software.
-
Equipped with the control host, the mic has a self-test function. The items to be tested include buttons, MIC, LED indicator, LCD screen, and built-in speaker.
-
The mic is a passive device, powered by the system host or PoE switch, with an input voltage of +48V.
-
When the microphone is turned on, the speaker of this mic is automatically turned off to prevent the sound from returning.
-
When the microphone is turned on, there is a beep sound, which can be set to ON or OFF.
-
Through the host settings, the chairman mic has the priority function (can mute or turn off all delegate mics), and the podium mode (the chairman mic is always on).
-
The chairman mic has permission to approve the application for speaking from the delegate mic.
-
The chairman mic can be turned on freely without being restricted by the number of speaking mics.
-
The chairman mic has the priority function of fully controlling the conference order.
-
The connection position of the chairman mic is not restricted.
